Dual Supply Lighting Distribution Box

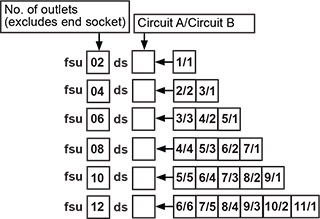

The Dual Supply Lighting Distribution Box makes it possible to independently control two groups of luminaires, each separately supplied by its own protective device at the distribution board. The desired supply split point is factory configured to order. In common with all units in the range the type of control can be simple on/off or dimmable. If using third party control products (i.e. switches/sensors) they will require hard wiring to the input terminals provided, but for ease of installation we strongly recommend selecting the appropriate control from our extensive range of plug-in control devices. Reserve one outlet on each side of the supply split for this method. Use for installations requiring an essential and a non-essential supply such as hospitals, or for load shedding applications. Note: Supplies must be on the same phase.

Description

Key Features

Outlets rated 16A 230V. Total system rating 16A.
Large capacity input terminals can accept 3 x 2.5mm², 2 x 4mm² or 1 x 6 mm² conductors.
7-pole – ideal for on/off or dimming control
End outlet can be used as a spare, or to plug-in additional units.
All units come with unique snap on/off single point fixing brackets.

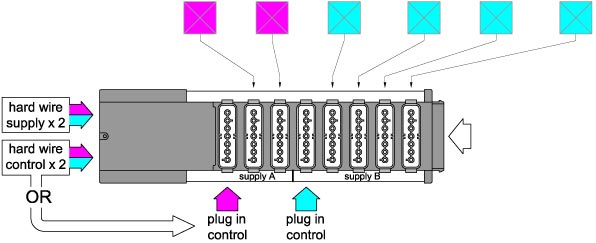

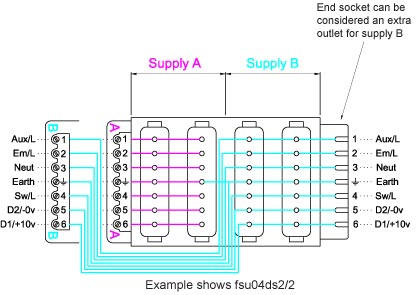

Using a Dual Supply Unit

Use end socket as a spare outlet (for supply B), but for more outlets plug in an
Expansion Unit – and utilise the existing ‘supply B’
OR a
Tap-off Unit – which will require independent ‘plug-in control’.
Note: In either case units can plug in direct ‘unit to unit’ or via
a suitable interconnecting lead.
