flex7 Lighting Control Applications

When you choose products from flex7 you can be certain that you’ve opted for a system that offers unrivalled flexibility combined with the simplest of installation methods.

Whatever your lighting control scenario, the only on-site termination required when using flex7 products is LNE to the Distribution Box, so standardising the installation process regardless of the complexity of your project. This is possible because at the heart of every flex7 product is the fundamental of plug-in modularity. As well as reducing installation time, this also offers a trouble-free upgrade path should requirements change in the future; unplug the old device(s) and plug in the new.

Hard Wired Connection Vs flex7 Connection

Diagram of flex7 Wiring connection when using hard-wired control
Wiring Diagrams flex7 Lighting Distribution Box

Lighting Scenarios

Below are a number of common lighting control applications ranging from traditional mains rated (on/off) switching through to daylight linking. Click on the images for detailed information, along with a list of the flex7 products required to achieve each.

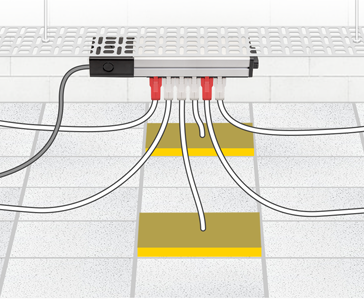

flex7 applications Mains 230V Switching

Mains 230V Switching

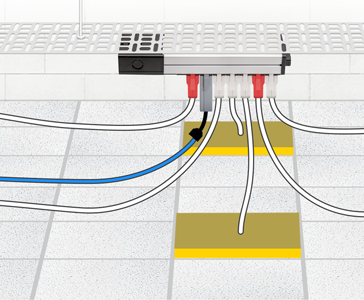

flex7 applications PELV Switching

PELV Switching

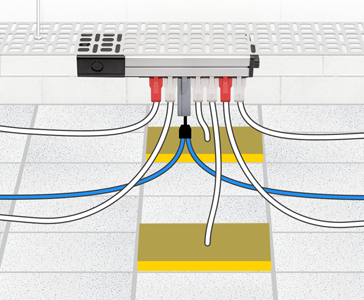

flex7 applications PELV 2 Way Switching

PELV 2-Way Switching

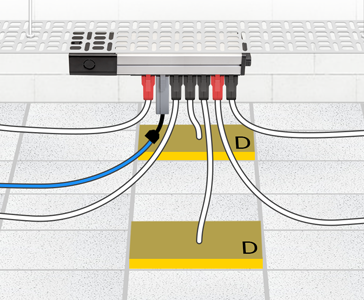

flex7 applications PELV Switching & Manual Dimming

PELV Switching + Manual Dimming

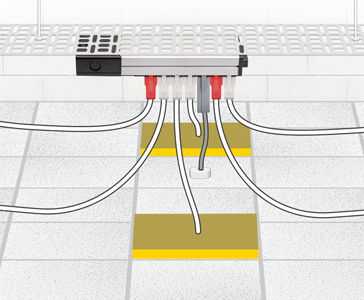

flex7 applications PELV Occupancy Control

PELV Occupancy Control

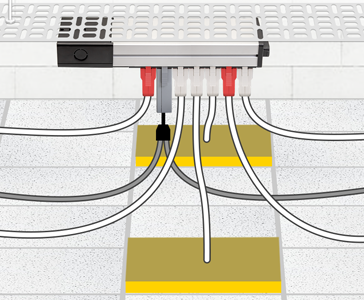

flex7 applications PELV Occupancy Control 2 X Heads

PELV Occupancy Control (2 x sensor Heads)

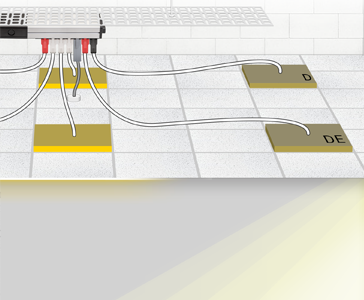

flex7 applications PELV Occupancy & Daylight Linking to Window Luminaires

PELV Occupancy & Daylight Linking To Window Luminaires

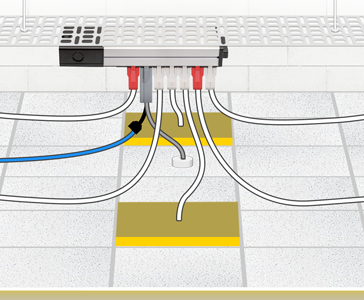

flex7 applications PELV Abscence Control

PELV Absence Control

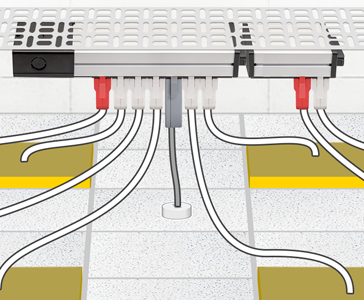

flex7 applications PELV Occupancy Control + Expansion Unit For Extra Luminaires

PELV Occupancy Control + Expansion Unit For Extra Luminaires

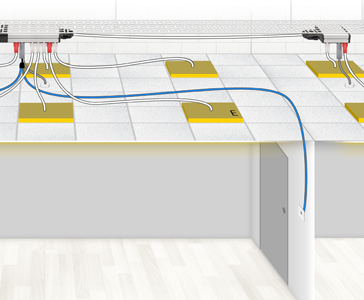

flex7 applications Standard Room With Extra Room

PELV Absence + Tap-off Unit with PELV Occupancy Control For Next Room

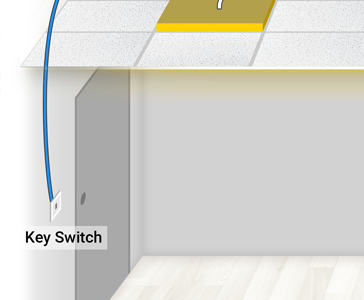

flex7 applications 2x PELV Occupancy Control + Global Emergency Test

2 x PELV Occupancy Control + Global Emergency Test

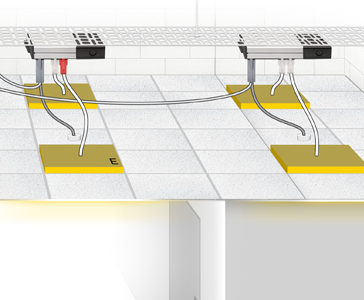

flex7 applications 3 x PELV Occupancy Control + Corridor Hold

3 x PELV Occupancy Control + Corridor Hold

Lighting Control Options

We have a huge range of lighting controls to choose from. Whether you require something as simple as on/off control, or a fully networked system with corridor hold, emergency test and timer switches we’ve got you covered. For an overview of our lighting controls and what we offer click below:
