Conference Room Scene Setting Kit

Offering a prefabricated alternative to traditional wiring, the flex7 ZoneLite Conference Room Kit offers a plug & play lighting connection and control solution that allows the user to set and recall 4 scenes. All products in the kit simply plug together, saving significant time on site, and reducing the need for skilled labour. Once the system is installed there is no need for expensive commissioning, the wall mounted scene setting plate can easily be programmed by the end user. Lighting control options include absence / presence / daylight linking / graduated daylight dimming. There are also options for independent switching of projector lights and integrated emergency test. Our switch drop leads operate at protected extra low voltage, which means they do not require any extra protection from an RCD, or enclosing in an earthed metallic covering, as is often the requirement for mains switch drops. The wall mounted Scene Setting Plate is available in white plastic with a white frame, or black, with a brushed steel frame, and connection is via an RJ plug.
Conference Room Kit

  • Full plug and play connection for rapid, simple installation.
  • 4 scenes can be set (with simple pin code security access) and recalled by the user.
  • Euromod style construction can be mounted in any electrical accessories manufacturer’s frame.
  • Integrated emergency light test facility.
  • Absence PIR control to automatically switch lights off when the meeting room is vacant.
  • Switch or dim (via DALI/DSI ballasts) luminaires across 4 channels.

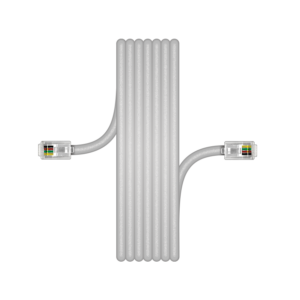

  • 2 fsl15 Link lead 4-core grey with plug both ends, 15m

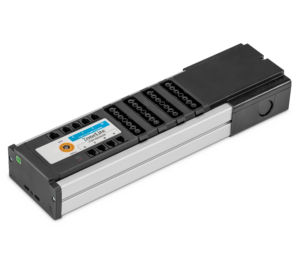

  • 1 fzl04g1111 ZoneLite – 4-Way, 4 channel Type G

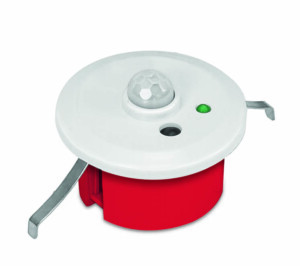

  • 1 fzh/pir ZoneLite Sensor Head, motion & remote handset sensing

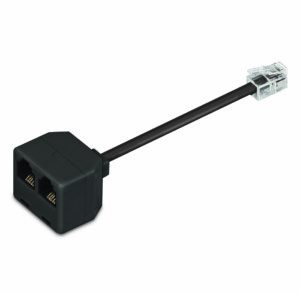

  • 1 fsy/a Standard ‘Y’ Adaptor for use with link & switch drop leads
  • 1 fss04/k/b/ss Scene Setting Plate, 4 scenes, kit, black, satin steel frame

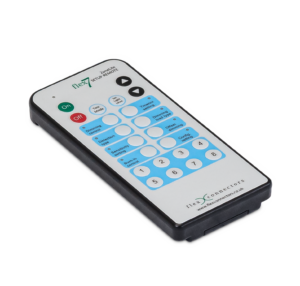

  • 1 fzl/rc ZoneLite Setup Remote

Pre-wired luminaire leads can be ordered separately, to your requirements.

fzs04/k/01 Conference Room Scene Setting Kit
