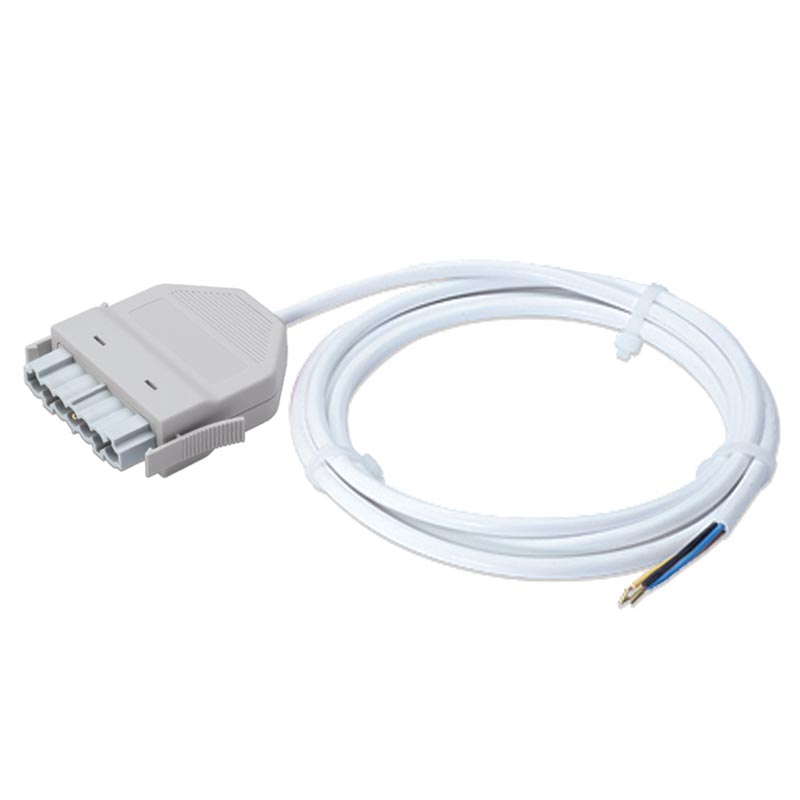

3rd Party Control Device Supply Leads

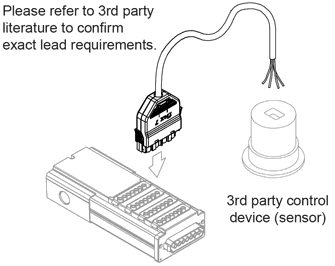

Wherever possible we recommend that lighting is controlled using a suitable plug-in control device selected from our extensive range of PELV sensors and switches. However, there are circumstances where using a 3rd party control device may be necessary. 3rd party control devices usually require hard wiring into a Lighting Distribution Box, but these leads provide the option to plug the control directly into the Lighting Distribution Box, thereby maintaining the same flex7 plug-in control philosophy and all its advantages.![3rd party control lead](https://www.flex7.co.uk/wp-content/uploads/2015/11/3rd-party-control-lead-for-website.jpg)
Key Features
- Rated 16A 230V.
- Strong latches for ensuring secure connection.
- Simple plug-in connection.

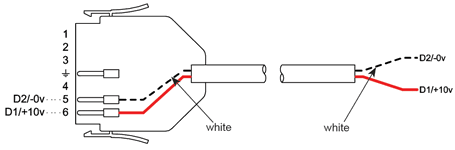

2-Core DALI Control Lead
Use with DALI devices (assumed powered by DALI).
![Wiring diagram for a flex7 2-core 3rd party control lead. Wiring diagram for a flex7 2-core 3rd party control lead.](https://www.flex7.co.uk/wp-content/uploads/2015/11/2-Core-3rd-Party-Control-Lead-Wiring-Diagram.jpg)

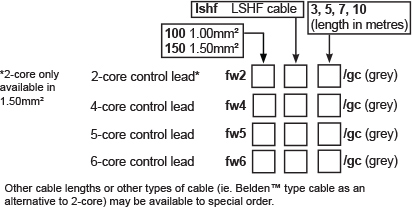

Ordering info
Product description | Part numbers |
---|---|
1.50mm cable, 2 metre | FW2150LSHF2/GC |
1.50mm cable, 3 metre | FW2150LSHF3/GC |
1.50mm cable, 5 metre | FW2150LSHF5/GC |
1.50mm cable, 7 metre | FW2150LSHF7/GC |

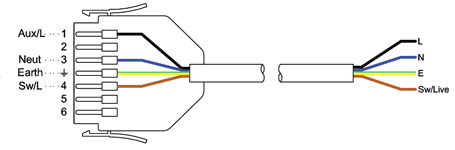

4-Core Control Lead
Use with 3rd party, 230V on/off control devices.
![Wiring diagram for a 4-core 3rd party control lead Wiring diagram for a 4-core 3rd party control lead](https://www.flex7.co.uk/wp-content/uploads/2015/11/4-Core-3rd-Party-Control-Lead-Wiring-Diagram.jpg)
Ordering info
Product description | Part numbers |
---|---|
1.50mm cable, 2 metre | FW4150LSHF2/GC |
1.50mm cable, 3 metre | FW4150LSHF3/GC |
1.50mm cable, 5 metre | FW4150LSHF5/GC |
1.50mm cable, 7 metre | FW4150LSHF7/GC |
5-Core Control Lead
Use with dimmable 3rd party 230V control devices (DSI or DALI).
![Wiring Diagram for flex7 5-core 3rd Party Control Lead Wiring Diagram for flex7 5-core 3rd Party Control Lead](https://www.flex7.co.uk/wp-content/uploads/2015/11/5-Core-3rd-Party-Control-Lead-Wiring-Diagram.jpg)
Ordering info
Product description | Part numbers |
---|---|
1.50mm cable, 2 metre | FW5150LSHF2/GC |
1.50mm cable, 3 metre | FW5150LSHF3/GC |
1.50mm cable, 5 metre | FW5150LSHF5/GC |
1.50mm cable, 7 metre | FW5150LSHF7/GC |

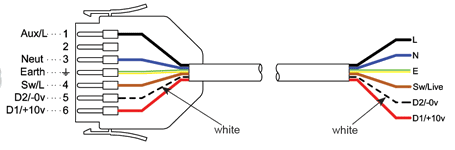

6-Core Control Lead
Use with dimmable 3rd party 230V control devices (Analogue, DSI or DALI).
![Wiring diagram for flex7 6-core 3rd party control lead Wiring diagram for flex7 6-core 3rd party control lead](https://www.flex7.co.uk/wp-content/uploads/2015/11/6-Core-3rd-Party-Control-Lead-Wiring-Diagram.jpg)
Ordering info
Product description | Part numbers |
---|---|
1.50mm cable, 2 metre | FW6150LSHF2/GC |
1.50mm cable, 3 metre | FW6150LSHF3/GC |
1.50mm cable, 5 metre | FW6150LSHF5/GC |
1.50mm cable, 7 metre | FW6150LSHF7/GC |
