ZoneLite Type G – Offices/Commercial

A lighting connection & control solution in one, that comes preprogrammed with up to 14 distinct lightings scenarios. Configured for use in single, multiple or open plan offices, & retail environments Offering a prefabricated alternative to traditional wiring, the ZoneLite Type G is designed for use in general office environments. It provides options for absence/presence/daylight linking/graduated daylight dimming lighting control, emergency test, corridor hold, last man out switch and scene setting.
ZoneLite Lighting Control Module
  • Control up to 4 lighting channels.
  • Available with 4, 16 or 20 outlets.
  • 14 preconfigured lighting layout options.
  • No commissioning required
Each ZoneLite can also accept up to 3 global switch commands.

    • Emergency Test – tests emergency fittings.
    • Last Man Out – initiates all connected luminaires off.
    • All Lights On – initiates all connected luminaires on.
Once the ZoneLite has been wired, simply:

  • Select your configuration
  • Plug-in pre-wired flex7 leads, and connect to luminaires
  • Plug-in sensor heads
  • Plug-in switch drop leads
  • Use Remote Control to make any adjustments to brightness, timeout periods etc.

Installing a ZoneLite1

If the ZoneLite Unit has insufficient outlets use Double Extender Leads to create more.

4-Way, 4 Channel, Type G    fzl04G1111
16-Way, 4 Channel, Type G    fzl16G4354
20-Way, 4 Channel, Type G    fzl20G5465

Note: the last 4 numbers of the part number represent the number of outlets per channel. For example an fzl16g4354 has 4 outlets for ch1, 3 for ch2, 5 for ch3, and 4 for ch4 (alternative splits may be available on enquiry).

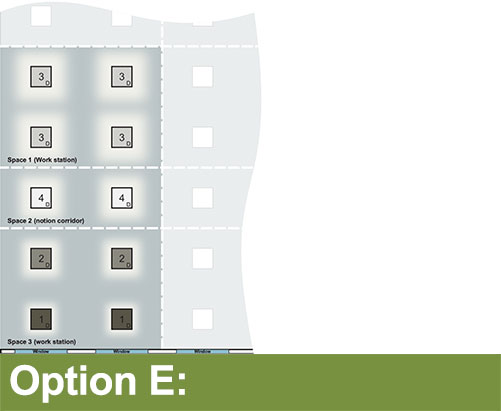

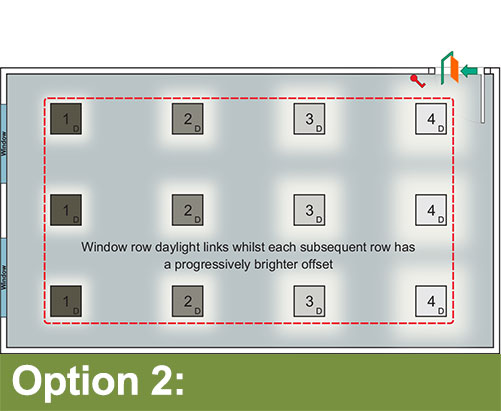

Configuration Options

Key

Many adaptions to each option are possible during setup
