Special Double Extender Leads

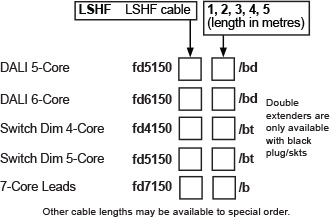

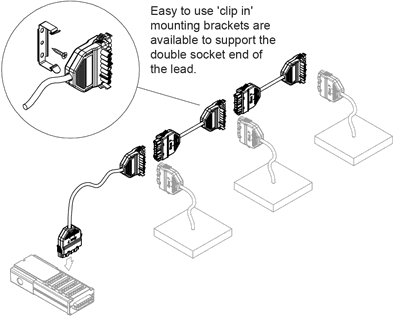

These Special Double Extender Leads are available specifically to work with and complement, Special Pre-wired Luminaire Leads and Single Extender Leads

Description

Key Features

Rated 16A 230V.
Strong latches for ensuring secure connection.
Simple plug-in connection

DALI Control Leads Wiring Diagram

Caution: only use 5-core if there are no emergency fittings in the run. Otherwise use 6-core throughout.

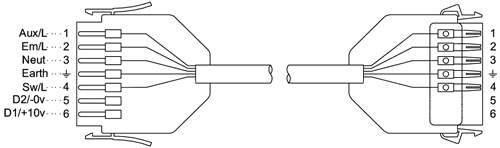

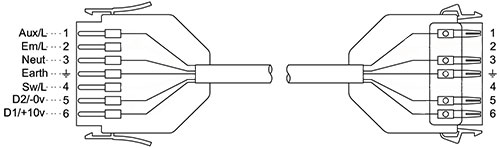

5-Core for non-emergency DALI control

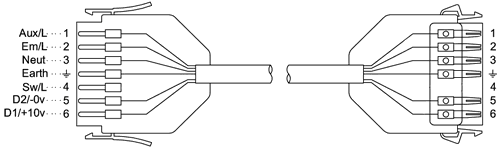

6-Core for emergency DALI control

Switch Dim™ Leads Wiring Diagram

Caution: only use 4-core if there are no emergency fittings in the run. Otherwise use 5-core throughout.

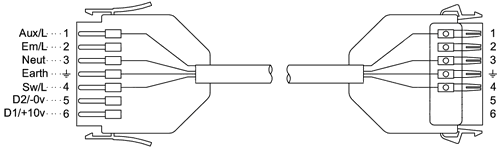

4-Core for non-emergency switch dim™

5-Core for emergency switch dim™

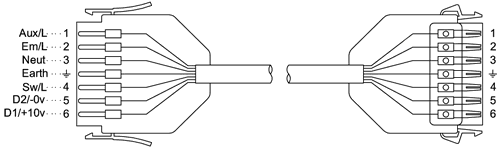

Note 1: All terminals on flex7 plugs and sockets are 230V~ 16A rated, but wherever possible we advise adherence to the following flex7 adopted standard of terminal designations. Please exercise care if deviating from these, as cross connection with a standard flex7 installation/product, present or future, may result in personal injury or damage to other equipment.

*Note on DALI and Switch Dim™ leads.

Lead philosophy assumes luminaires require a permanent supply that is separate to the emergency live (so lights stay on during an emergency test). However, if the emergency supply can suffice for both then the non-emergency type leads can be used throughout, regardless of whether a fitting is emergency or not. This also applies to their Single and Double Extender equivalents.
