Double Extender Leads

The Double Extender Lead is similar in design to the Single Extender Lead, but with the added benefit of an additional socket fitted at right angles to the existing inline socket. The right-angled socket can be used to plug into a local luminaire, while the inline socket continues the circuit to the next fitting. This solution is particularly useful where luminaires are sited in rows, such as corridors and open plan offices, or where specification calls for a means of disconnection close to the luminaire. Additionally, unlike similar systems, any luminaire in the row can be unplugged without affecting any of the others.

Description

Key Features

Rated 16A 230V.
Strong latches for ensuring secure connection.
Simple plug-in connection

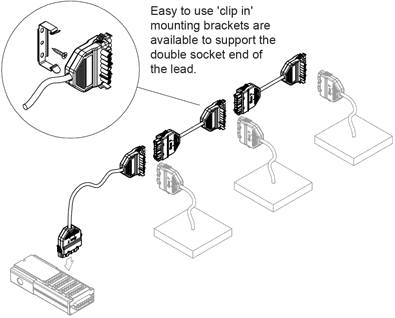

Connecting a Double Extender Lead

Standard on/off Double Extender Leads

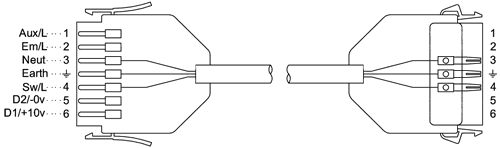

3-core Double Extender Lead for use with standard on/off luminaires. Supplied with black plug and socket

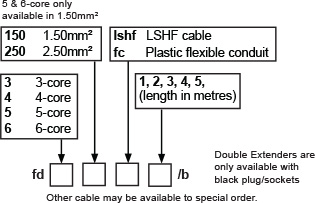

Ordering info

Product description	Part number
1.50mm cable, 2 metre	FD3150LSHF2/B
1.50mm cable, 3 metre	FD3150LSHF3/B
1.50mm cable, 5 metre	FD3150LSHF5/B
1.50mm cable, 7 metre	FD3150LSHF7/B

Maintained Emergency Double Extender Leads

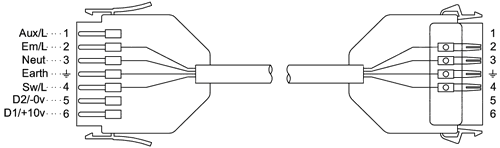

4-core Double Extender Lead for use with standard on/off + maintained emergency luminaires. Supplied with black plug and socket

Ordering info

Product description	Part number
1.50mm cable, 2 metre	FD4150LSHF2/B
1.50mm cable, 3 metre	FD4150LSHF3/B
1.50mm cable, 5 metre	FD4150LSHF5/B
1.50mm cable, 7 metre	FD4150LSHF7/B

Dimmable Double Extender Leads

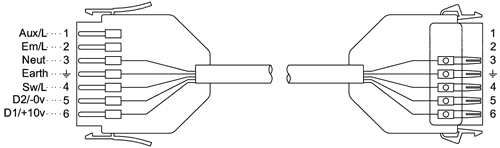

5-core Double Extender Lead for use with dimmable luminaires. Supplied with black plug and socket

Ordering info

Product description	Part number
1.50mm cable, 2 metre	FD5150LSHF2/B
1.50mm cable, 3 metre	FD5150LSHF3/B
1.50mm cable, 5 metre	FD5150LSHF5/B
1.50mm cable, 7 metre	FD5150LSHF7/B

Dimmable Maintained Emergency Double Extender Leads

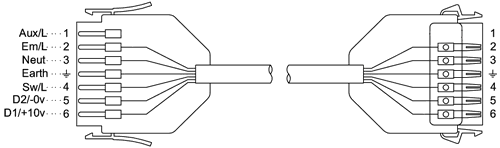

6-core Double Extender Lead for use with dimmable + maintained emergency luminaires. Supplied with black plug and socket

Ordering info

Product description	Part number
1.50mm cable, 2 metre	FD6150LSHF2/B
1.50mm cable, 3 metre	FD6150LSHF3/B
1.50mm cable, 5 metre	FD6150LSHF5/B
1.50mm cable, 7 metre	FD6150LSHF7/B
