Series 3000 (dimming) Occupancy Sensor – Kits

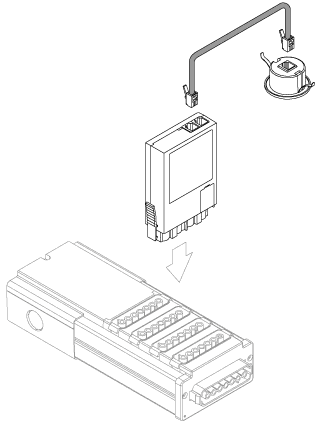

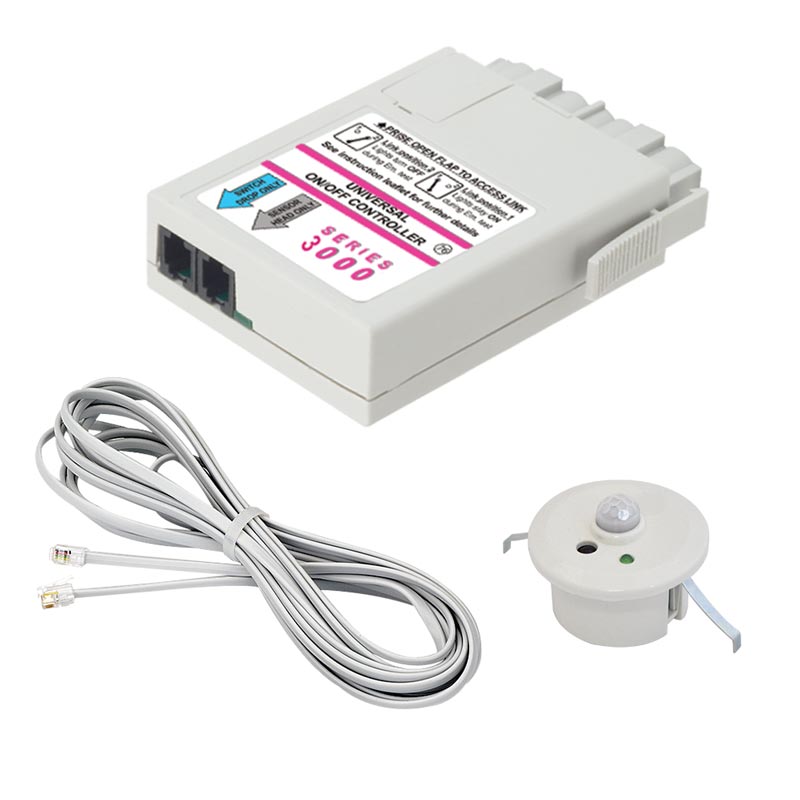

The flex7 fns3200 is an occupancy sensor kit with dimming functionality. The kit consists of a control device, occupancy sensor head and link lead. The occupancy sensor switches lights on when presence is detected in a room or area, and off if absence is detected for a period equal to its programmed timeout. The timeout period can be programmed to your requirements, using a flex7 Setup Remote Control. The flex7 fns3400 is a daylight linking version. As well as standard on/off occupancy control, it will also dim luminaires up/down according to natural daylight levels in a space. The control will maintain a constant light level under the sensor head. This target level is pre-settable to your requirements. 3 versions of the product are available, one for each of the generally used dimming protocols – DSI, DALI or 0 – 10v (analogue).
Series 3000 Universal Sensor Kit
  • Discreet Sensor Head
  • Increase detection 6 fold range by adding extra sensor heads
  • Adjustable timeout period
  • Supply Voltage: 230V~ 50hz
  • Load rating at 230V: 6A max.
Sensor Head: fnh200 occupancy or fnh400 occupancy + light level

Control Pack: fnc3000d/u DSI or fnc3000x/u DALI or fnc3000a/u 1-10V

Leads: fsl05

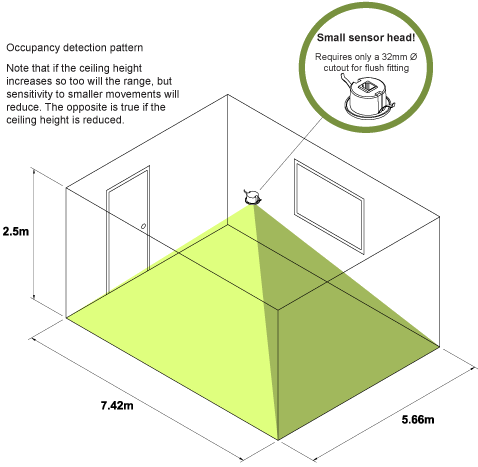

Note that if the ceiling height increases so too will the range, but sensitivity to smaller movements will reduce. The opposite is true if the ceiling height is reduced

Detection range can be increased up to 6 fold by adding Slave Occupancy Heads (5 max.) in parallel with the existing head. Ideal for corridors and large or odd shaped areas.

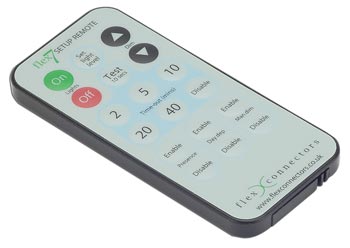

frc/set – Setup Remote Control.

All sensors come factory set with a 20 minute timeout but for other times (2, 5, 10, 20 or 40) or to setup the light level for daylight dependency version, a Setup Remote Control is required.


frc/user – End User Remote Control.

For additional coverage for the end user a User Remote Control is available. Unit comes with its own wall mounted holster.
