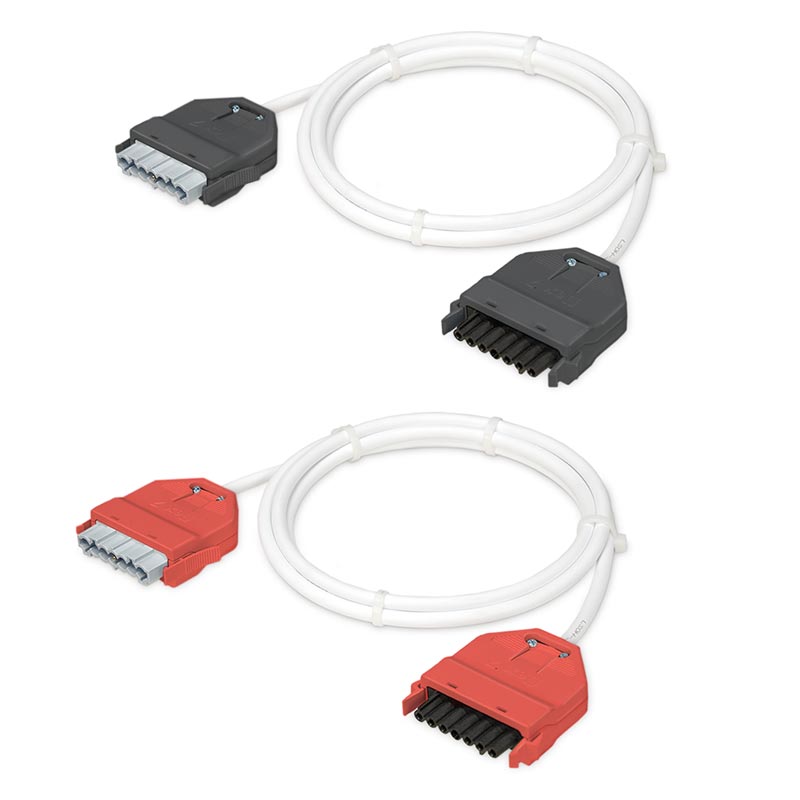

Special Extender Leads

These Extender Leads are available specifically to work with and complement our Special Pre-wired Luminaire Leads.

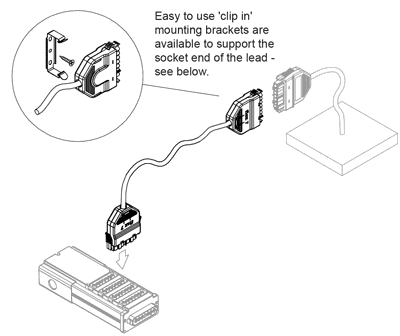

Description

Key Features

Rated 16A 230V.
Strong latches for ensuring secure connection.
Simple plug-in connection

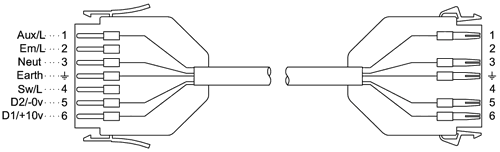

DALI Control Leads Wiring Diagram

Typically where control of luminaires is via a DALI network

5-Core for non-emergency DALI control

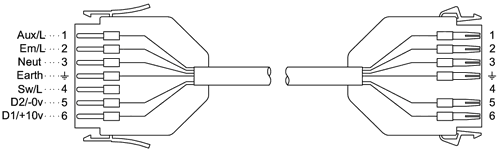

6-Core for emergency DALI control

Switch Dim™ Leads Wiring Diagram

Because not all luminaires have the same standard control and supply requirements we have provided an additional range of Special Pre-wired Luminaire Leads to cater for some of the more unusual applications.

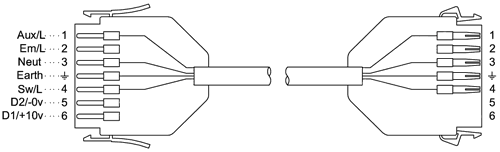

4-Core for non-emergency switch dim™

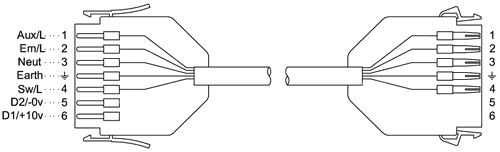

5-Core for emergency switch dim™

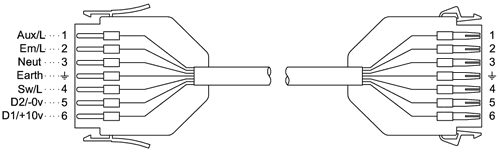

7-Core Wiring Diagram

For special luminaire applications.

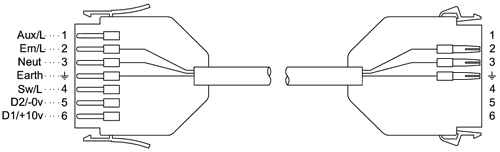

3-Core Wiring Diagram

Typically for non-maintained emergency luminaires.

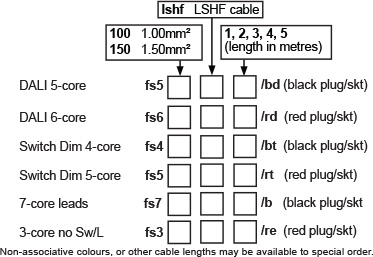

*Note on DALI and Switch Dim™ leads.

Lead philosophy assumes luminaires require a permanent supply that is separate to the emergency live (so lights stay on during an emergency test). However, if the emergency supply can suffice for both then the non-emergency type leads can be used throughout, regardless of whether a fitting is emergency or not. This also applies to their Single and Double Extender equivalents.
