Flush Panel Mount Sockets (3, 4 & 7-Pole)

Available in 3, 4 and 7-pole versions, Panel Mount Sockets enable the flex7 interface to be added to luminaires or other equipment, allowing flex7 leads to connect directly to and from the equipment. Designed with a minimal thickness front plate and a strong snap fixing, the Panel Mount snaps into a rectangular hole in materials from 0.5mm – 1.50mm thick. Panel Mount Sockets are supplied with screw terminals. However, they can easily be pre-wired with your required cables – contact us on 020 8580 1066 to discuss your requirements and obtain a quotation.

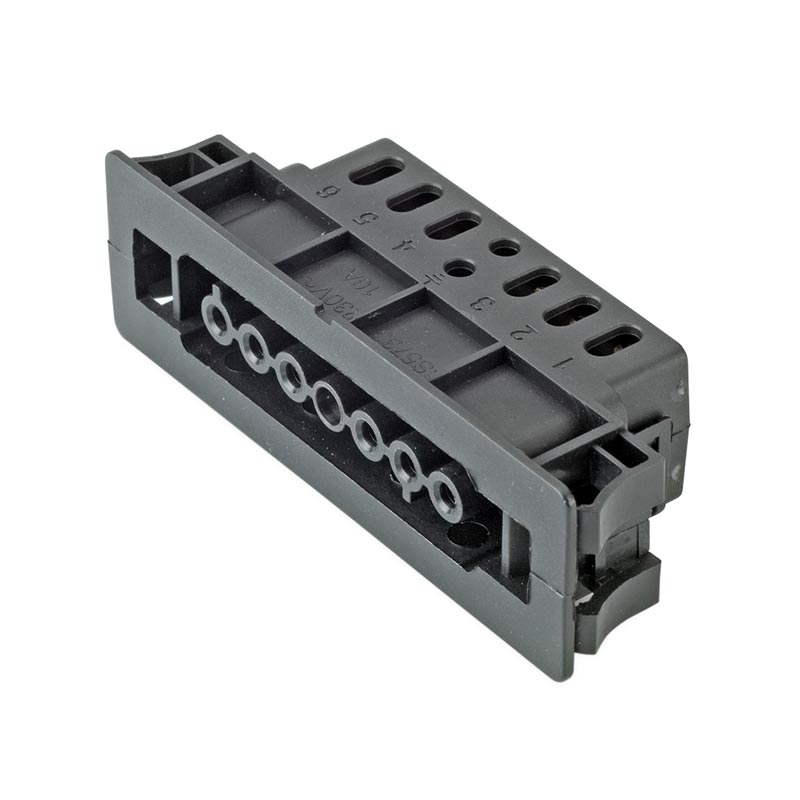

Flush-Panel-Mount-Socket
  • Rated 230V~ 16A

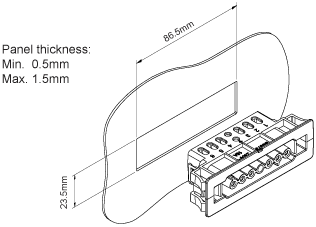

  • Snaps into rectangular cut out 23.5mm x 86.5mm
Typically for non-dimmable luminaires.

Typically for non-dimmable emergency luminaires.

Typically for non-dimmable luminaires (emergency of non emergency).
