Flush Panel Mount Plugs (3, 4 & 7-Pin)
Available in 3, 4 and 7-pin versions, Panel Mount Plugs enable the flex7 interface to be added to luminaires or other equipment, allowing flex7 leads to connect directly to and from the equipment.

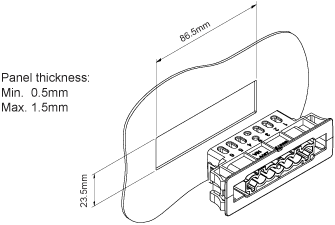

Designed with a minimal thickness front plate and a strong snap fixing, the Panel Mount snaps into a rectangular hole in materials from 0.5mm – 1.50mm thick.
Panel Mount Plugs are supplied with screw terminals. However, they can easily be pre-wired with your required cables – contact us on 020 8580 1066 to discuss your requirements and obtain a quotation.
