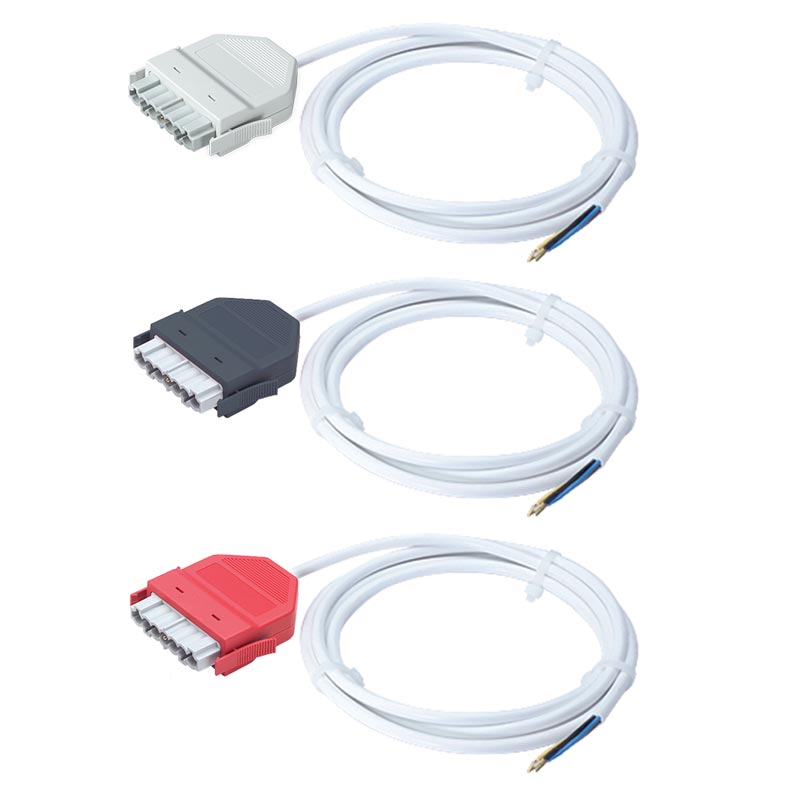

Luminaire Leads
We offer an extensive range of luminaire leads which minimise installation time. All variants are available in Low Smoke Halogen Free (LSHF) Cable, in accordance with BS EN 50525-3-11 and CPR rated to category Cca, so you can be assured that they'll meet required safety standards for public and commercial buildings. All luminaire leads in the range are 100% tested, and come with ferruled conductors at free end. Compatible with all Lighting Distribution Boxes Non-associative colours, and other cable lengths may be available to special order. Please phone us on 020 8580 1066 for part numbers or advice.
Key Features
- Rated 16A 230V.
- Strong latches for ensuring secure connection.
- Simple plug-in connection

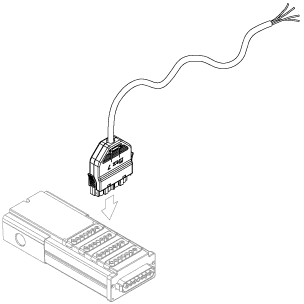

Connecting a pre-wired luminaire lead
Standard Luminaire Leads

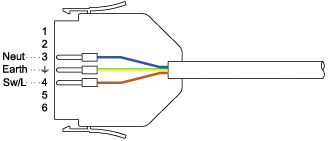

3-core luminaire leads for use with standard on/off luminaires. Supplied with white plug.

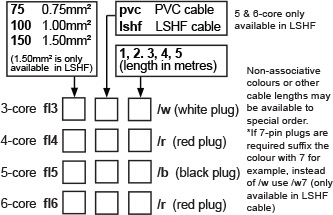

Ordering information
| Product description | Part number |
|---|---|
| 0.75mm cable, 2 metre | FL375LSHF2/W |
| 0.75mm cable, 3 metre | FL375LSHF3/W |
| 0.75mm cable, 5 metre | FL375LSHF5/W |
| 0.75mm cable, 7 metre | FL375LSHF7/W |
| 1.00mm cable, 2 metre | FL3100LSHF2/W |
| 1.00mm cable, 3 metre | FL3100LSHF3/W |
| 1.00mm cable, 5 metre | FL3100LSHF5/W |
| 1.00mm cable, 7 metre | FL3100LSHF7/W |
| 1.50mm cable, 2 metre | FL3150LSHF2/W |
| 1.50mm cable, 3 metre | FL3150LSHF3/W |
| 1.50mm cable, 5 metre | FL3150LSHF5/W |
| 1.50mm cable, 7 metre | FL3150LSHF7/W |
Maintained Emergency Luminaire Leads

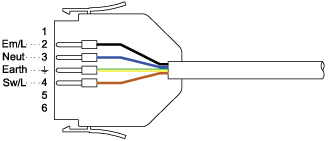

4-core luminaire leads for use with standard on/off + maintained emergency luminaires. Supplied with red plug.
Ordering information
| Product description | Part number |
|---|---|
| 0.75mm cable, 2 metre | FL475LSHF2/R |
| 0.75mm cable, 3 metre | FL475LSHF3/R |
| 0.75mm cable, 5 metre | FL475LSHF5/R |
| 0.75mm cable, 7 metre | FL475LSHF7/R |
| 1.00mm cable, 2 metre | FL4100LSHF2/R |
| 1.00mm cable, 3 metre | FL4100LSHF3/R |
| 1.00mm cable, 5 metre | FL4100LSHF5/R |
| 1.00mm cable, 7 metre | FL4100LSHF7/R |
| 1.50mm cable, 2 metre | FL4150LSHF2/R |
| 1.50mm cable, 3 metre | FL4150LSHF3/R |
| 1.50mm cable, 5 metre | FL4150LSHF5/R |
| 1.50mm cable, 7 metre | FL4150LSHF7/R |
Dimmable Luminaire Leads
5-core luminaire leads for use with dimmable luminaires. Supplied with black plug. Note: live terminal (4) is switched live.
Ordering information
| Product description | Part number |
|---|---|
| 0.75mm cable, 2 metre | FL575LSHF2/B |
| 0.75mm cable, 3 metre | FL575LSHF3/B |
| 0.75mm cable, 5 metre | FL575LSHF5/B |
| 0.75mm cable, 7 metre | FL575LSHF7/B |
| 1.00mm cable, 2 metre | FL5100LSHF2/B |
| 1.00mm cable, 3 metre | FL5100LSHF3/B |
| 1.00mm cable, 5 metre | FL5100LSHF5/B |
| 1.00mm cable, 7 metre | FL5100LSHF7/B |
| 1.50mm cable, 2 metre | FL5150LSHF2/B |
| 1.50mm cable, 3 metre | FL5150LSHF3/B |
| 1.50mm cable, 5 metre | FL5150LSHF5/B |
| 1.50mm cable, 7 metre | FL5150LSHF7/B |
Dimmable Maintained Emergency Luminaire Leads
6-core luminaire lead for use with dimmable + maintained emergency luminaires. Supplied with red plug.
Ordering information
| Product description | Part number |
|---|---|
| 0.75mm cable, 2 metre | FL675LSHF2/R |
| 0.75mm cable, 3 metre | FL675LSHF3/R |
| 0.75mm cable, 5 metre | FL675LSHF5/R |
| 0.75mm cable, 7 metre | FL675LSHF7/R |
| 1.00mm cable, 2 metre | FL6100LSHF2/R |
| 1.00mm cable, 3 metre | FL6100LSHF3/R |
| 1.00mm cable, 5 metre | FL6100LSHF5/R |
| 1.00mm cable, 7 metre | FL6100LSHF7/R |
| 1.50mm cable, 2 metre | FL6150LSHF2/R |
| 1.50mm cable, 3 metre | FL6150LSHF3/R |
| 1.50mm cable, 5 metre | FL6150LSHF5/R |
| 1.50mm cable, 7 metre | FL6150LSHF7/R |
Luminaire Leads for Special Applications
7-core luminaire lead for use with bespoke luminaires eg. luminaires that have multiple switch lives. Supplied with black plug.
Ordering information
| Product description | Part number |
|---|---|
| 0.75mm cable, 2 metre | FL775LSHF2/B |
| 0.75mm cable, 3 metre | FL775LSHF3/B |
| 0.75mm cable, 5 metre | FL775LSHF5/B |
| 0.75mm cable, 7 metre | FL775LSHF7/B |
| 1.00mm cable, 2 metre | FL7100LSHF2/B |
| 1.00mm cable, 3 metre | FL7100LSHF3/B |
| 1.00mm cable, 5 metre | FL7100LSHF5/B |
| 1.00mm cable, 7 metre | FL7100LSHF7/B |
| 1.50mm cable, 2 metre | FL7150LSHF2/B |
| 1.50mm cable, 3 metre | FL7150LSHF3/B |
| 1.50mm cable, 5 metre | FL7150LSHF5/B |
| 1.50mm cable, 7 metre | FL7150LSHF7/B |
Non-maintained Emergency Luminaire Leads
3-core Luminaire Lead for use with non-maintained, emergency luminaires. Supplied with a red plug.
Ordering information
| Product description | Part number |
|---|---|
| 0.75mm cable, 2 metre | FL375LSHF2/RE |
| 0.75mm cable, 3 metre | FL375LSHF3/RE |
| 0.75mm cable, 5 metre | FL375LSHF5/RE |
| 0.75mm cable, 7 metre | FL375LSHF7/RE |
| 1.00mm cable, 2 metre | FL3100LSHF2/RE |
| 1.00mm cable, 3 metre | FL3100LSHF3/RE |
| 1.00mm cable, 5 metre | FL3100LSHF5/RE |
| 1.00mm cable, 7 metre | FL3100LSHF7/RE |
| 1.50mm cable, 2 metre | FL3150LSHF2/RE |
| 1.50mm cable, 3 metre | FL3150LSHF3/RE |
| 1.50mm cable, 5 metre | FL3150LSHF5/RE |
| 1.50mm cable, 7 metre | FL3150LSHF7/RE |
Permanent Supply Luminaire Leads
3-core Luminaire Lead for use where each luminaire has an integral PIR, and no external Control Module is required. Supplied with white plug.
Ordering information
| Product description | Part number |
|---|---|
| 0.75mm cable, 2 metre | FL375LSHF2/WP |
| 0.75mm cable, 3 metre | FL375LSHF3/WP |
| 0.75mm cable, 5 metre | FL375LSHF5/WP |
| 0.75mm cable, 7 metre | FL375LSHF7/WP |
| 1.00mm cable, 2 metre | FL3100LSHF2/WP |
| 1.00mm cable, 3 metre | FL3100LSHF3/WP |
| 1.00mm cable, 5 metre | FL3100LSHF5/WP |
| 1.00mm cable, 7 metre | FL3100LSHF7/WP |
| 1.50mm cable, 2 metre | FL3150LSHF2/WP |
| 1.50mm cable, 3 metre | FL3150LSHF3/WP |
| 1.50mm cable, 5 metre | FL3150LSHF5/WP |
| 1.50mm cable, 7 metre | FL3150LSHF7/WP |
